Traditional houses
LK&676
PLAN DESCRIPTION
FLOOR PLANS

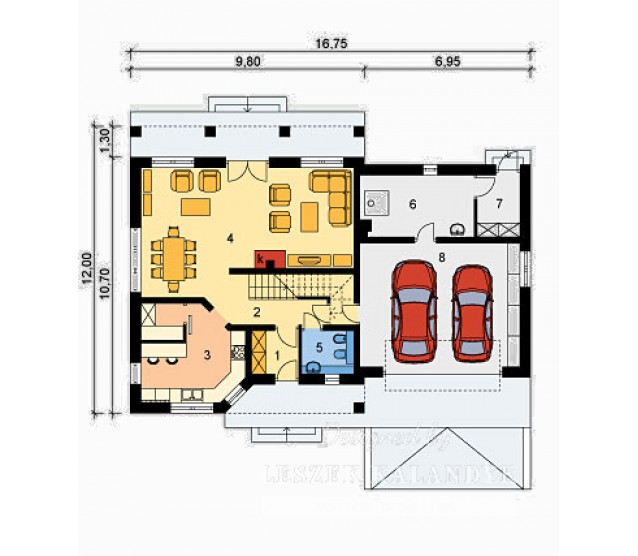

Ground floor

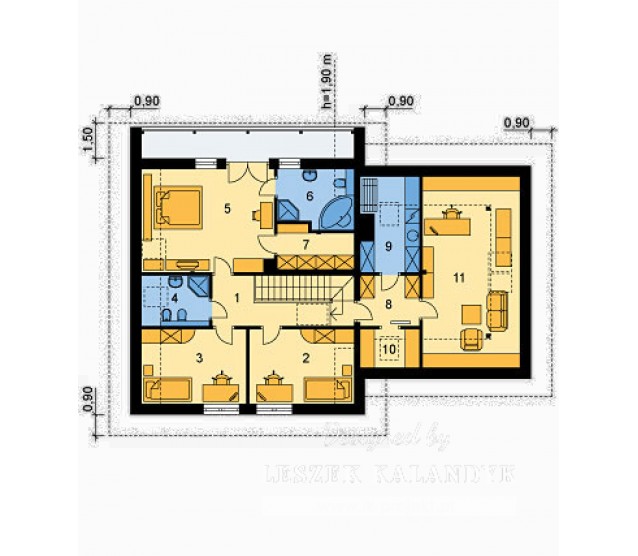

Attic


FULL SPECS & FEATURES
1. Usable area167,6 m²
2. Area garage36,64 m²
3. Additional area16,69 m²
4. Total surface327,03 m²
5. Building area160,35 m²
6. Net volume632,64 m³
7. Gross volume1445,95 m³
8. Energy for heating8,89 kWh/m²*year
9. Building height8,98 m
10. Attic wall height1,22 m
11. Roof angle40 °
12. Roof area228,27 m²
13. Сeiling height2,51/2,68/2,89/2,94 m
14. Minimum plot size24,95 x 19,1 m


If you need more information, please feel free to contact us.
