Luxury houses - 86052bw
Floor Plan

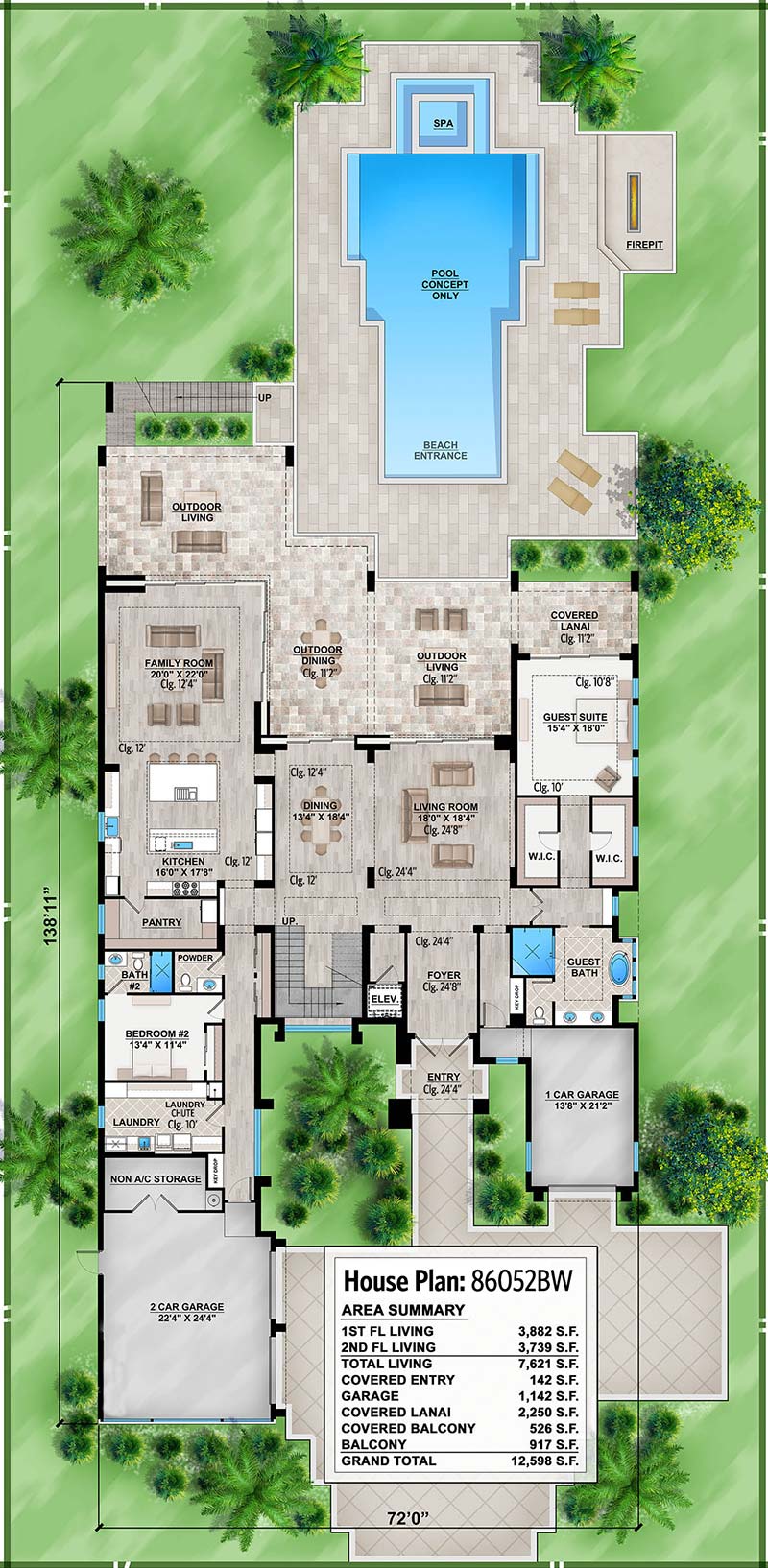

Main Level

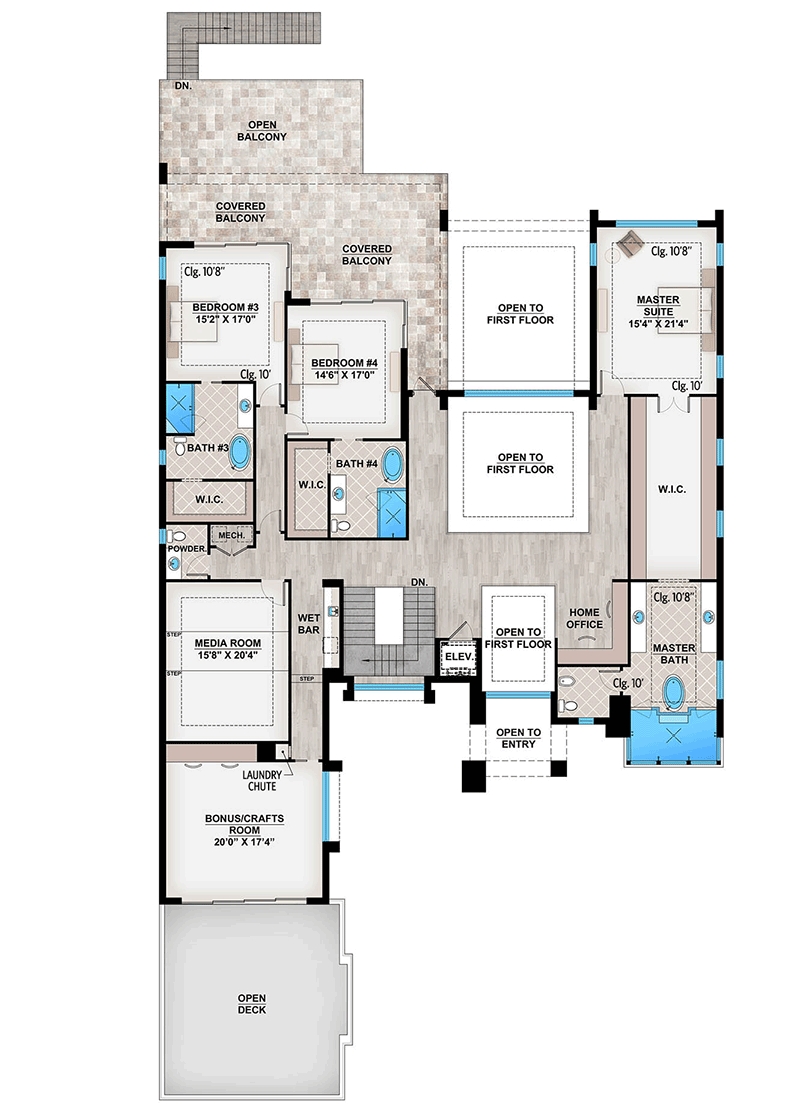

2nd Floor

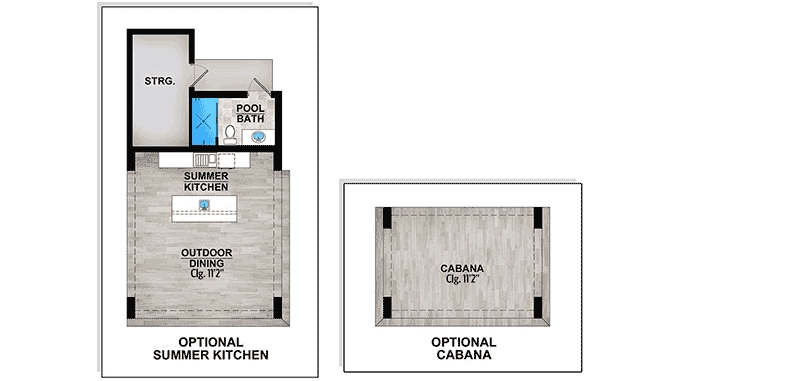

Optional


Plan details

Square Footage Breakdown

  • Total Heated Area:7,621 sq. ft.

  • 1st Floor:3,882 sq. ft.

  • 2nd Floor:3,739 sq. ft.

  • Lanai:2,250 sq. ft.

  • Balcony / Veranda:917 sq. ft.

  • Entry:142 sq. ft.

Beds/Baths

  • Bedrooms:5

  • Full Bathrooms:5 or 6

  • Half Bathrooms:2

Foundation Type

  • Standard Foundations:Slab

Exterior Walls

  • Standard Type(s):Block

  • Optional Type(s):2x6


Dimensions

  • Width:72' 0"

  • Depth:138' 11"

  • Max Ridge Height:31' 8"

Garage

  • Type:Attached

  • Area:1142 sq. ft.

  • Count:3 cars

  • Entry Location:Courtyard

Ceiling Heights

RoomTypeHeight
Master BedroomCoffered10' 0" - 10' 8"
Master BathCoffered10' 0" - 10' 8"
Living RoomCoffered24' 4" - 24' 8"
Family RoomCoffered12' 0" - 12' 4"
Dining RoomCoffered12' 0" - 12' 4"
KitchenCoffered12' 0" - 12' 4"
EntryFlat24' 4"
FoyerCoffered24' 4" - 24' 8"
Bedroom 2Flat10' 0"
Bedroom 3Coffered10' 0" - 10' 8"
LanaiFlat11' 2"
Laundry RoomFlat10' 0"

Roof Details

  • Framing Type:Truss
