Luxury houses - 86041bw
Floor Plan

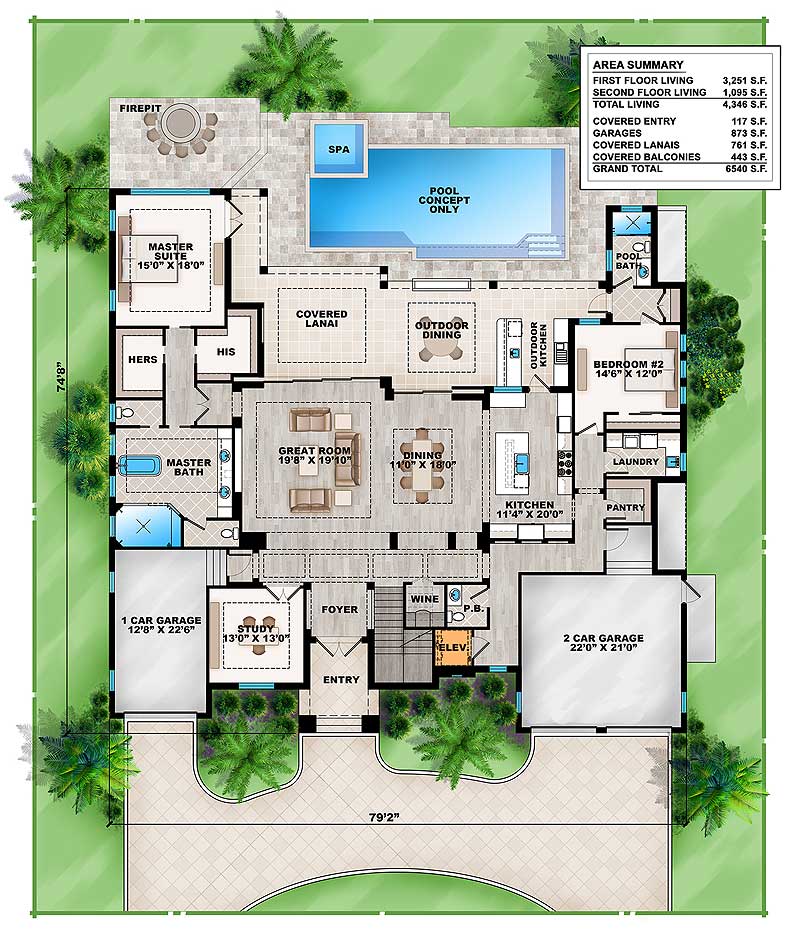

Main Level

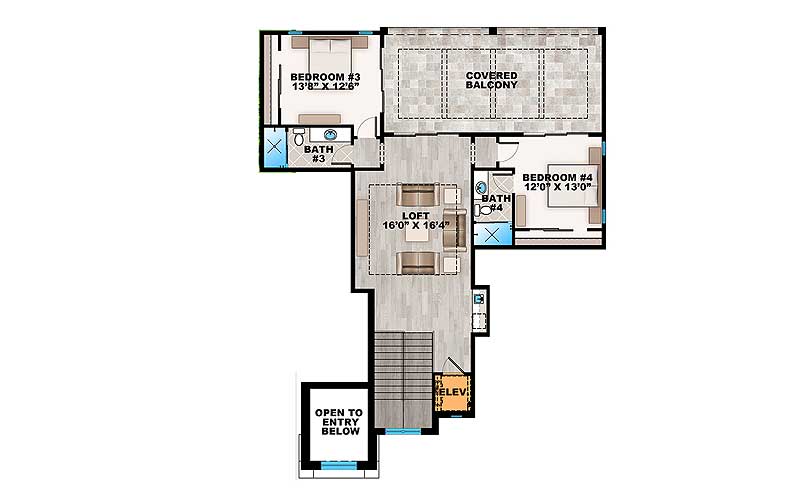

2nd Floor


Plan details

Square Footage Breakdown

  • Total Heated Area:4,346 sq. ft.

  • 1st Floor:3,251 sq. ft.

  • 2nd Floor:1,095 sq. ft.

  • Entry:117 sq. ft.

  • Balcony / Veranda:443 sq. ft.

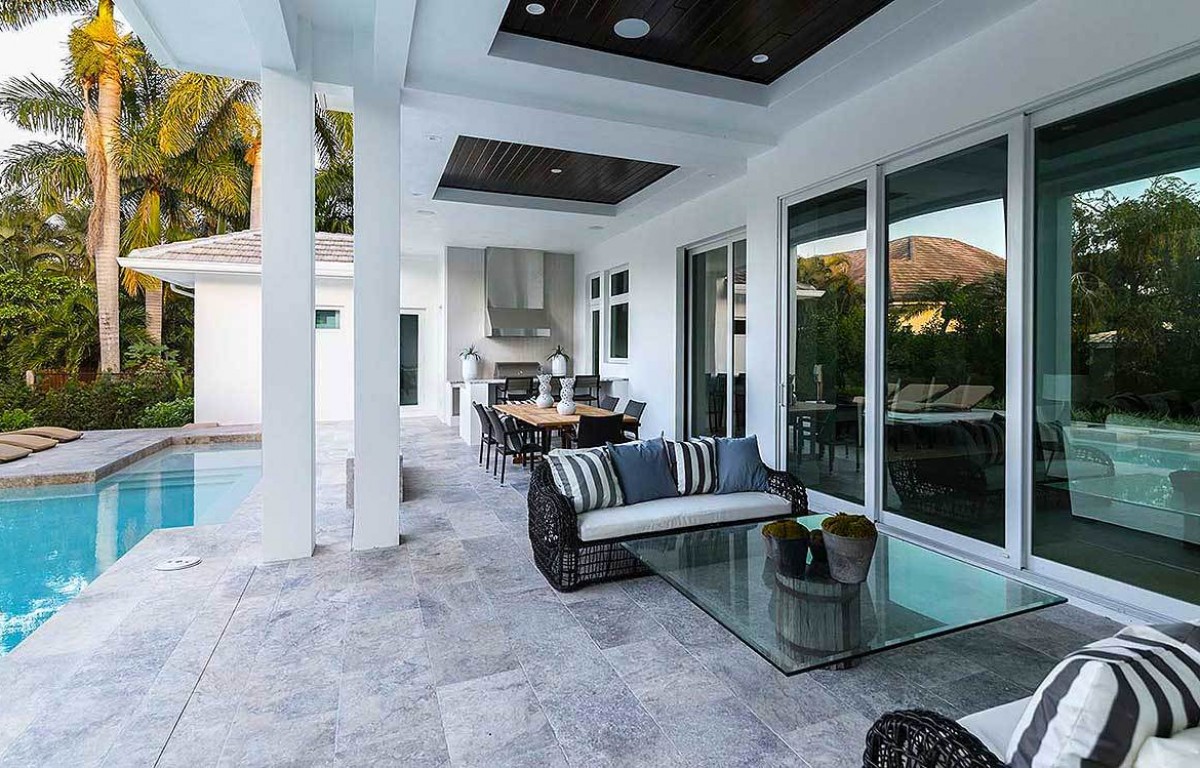

  • Lanai:761 sq. ft.

Beds/Baths

  • Bedrooms:4

  • Full Bathrooms:4

  • Half Bathrooms:1

Foundation Type

  • Standard Foundations:Slab

Exterior Walls

  • Standard Type(s):Block

  • Optional Type(s):2x6


Dimensions

  • Width:79' 2"

  • Depth:74' 8"

  • Max Ridge Height:29' 6"

Garage

  • Type:Attached

  • Area:873 sq. ft.

  • Count:3 cars

  • Entry Location:Front

Ceiling Heights

  • Floor / Height:First Floor / 10' 0"Second Floor / 9' 4"

RoomTypeHeight

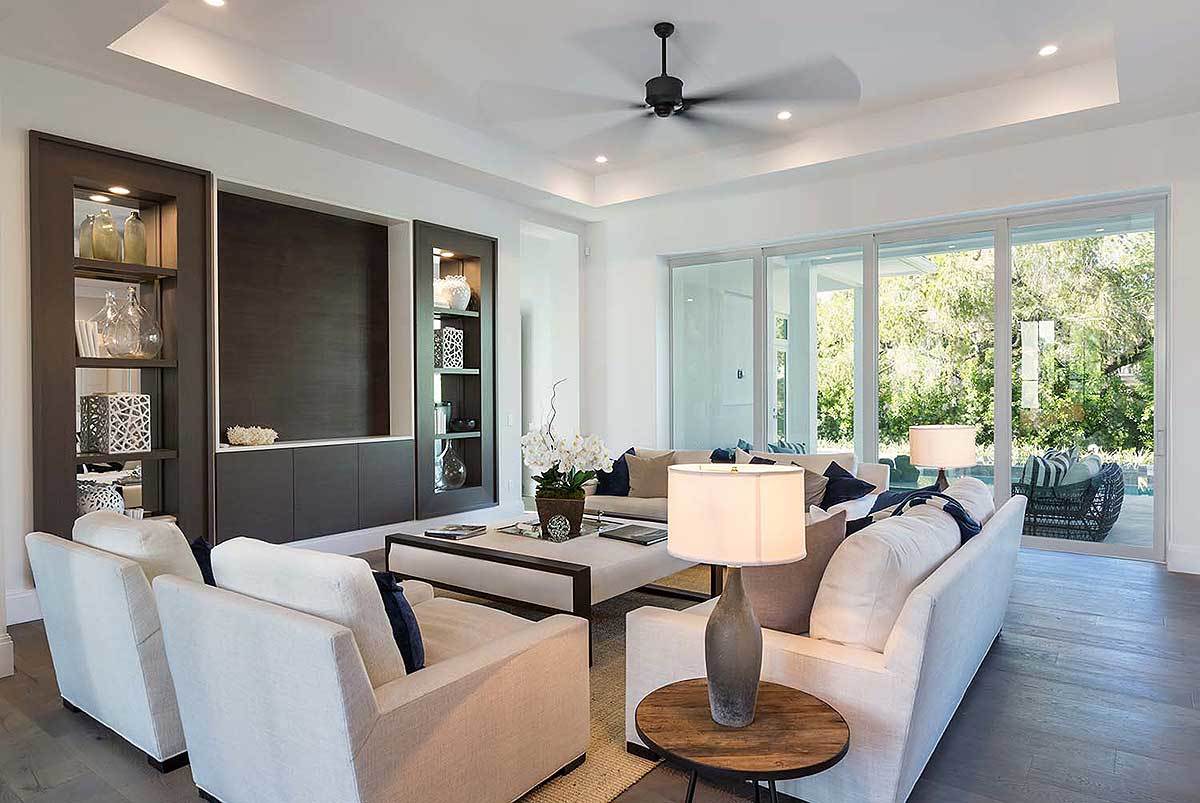

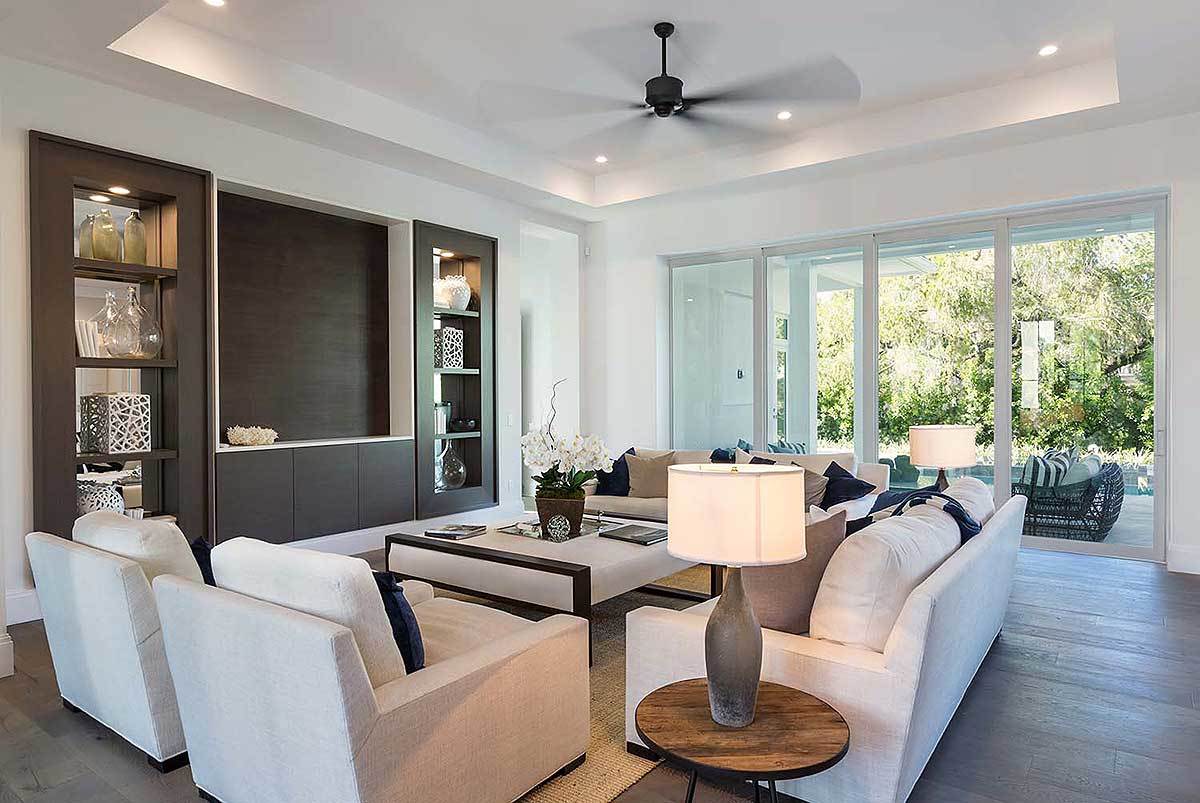

Great RoomCoffered12' 8"
Dining RoomCoffered12' 8"
EntryFlat20' 6"
FoyerFlat16' 8"

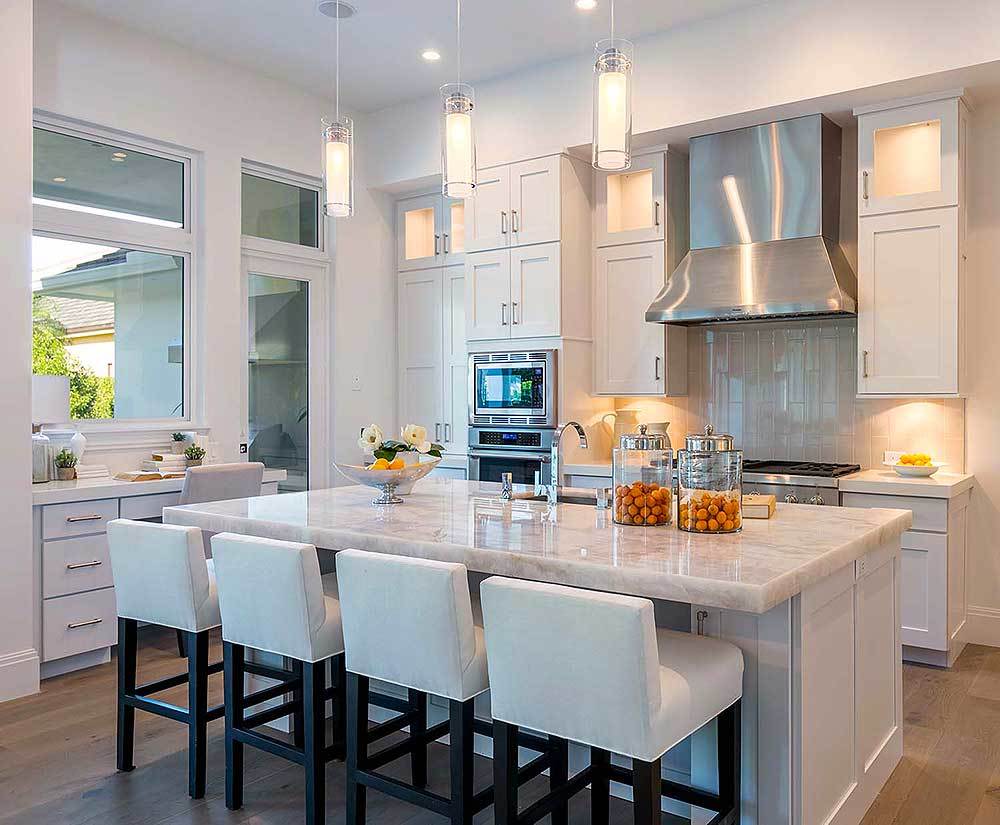

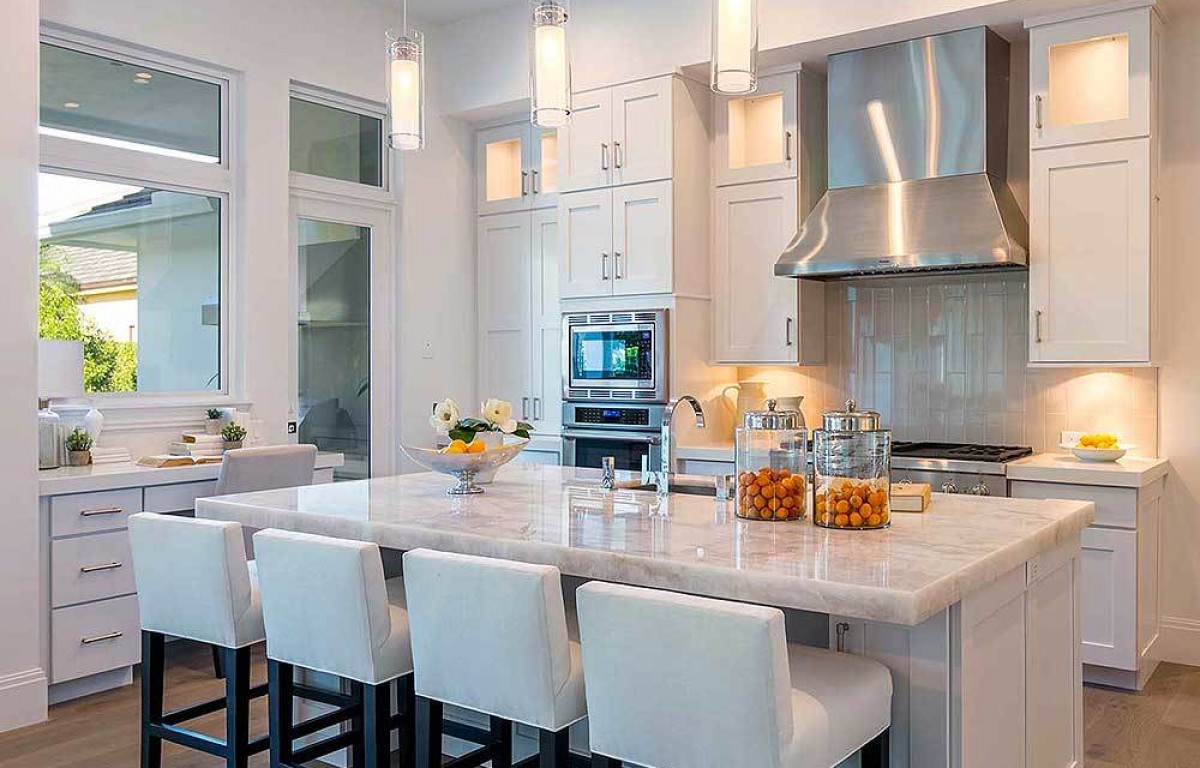

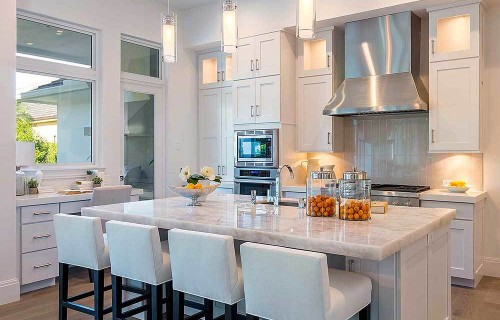

KitchenFlat12' 0"
StudyCoffered12' 8"
Master BedroomCoffered13' 0"
Master BathCoffered13' 0"

Roof Details

  • Primary Pitch:6 On 12

  • Framing Type:Truss
