Luxury houses - 86016bw
Floor Plan

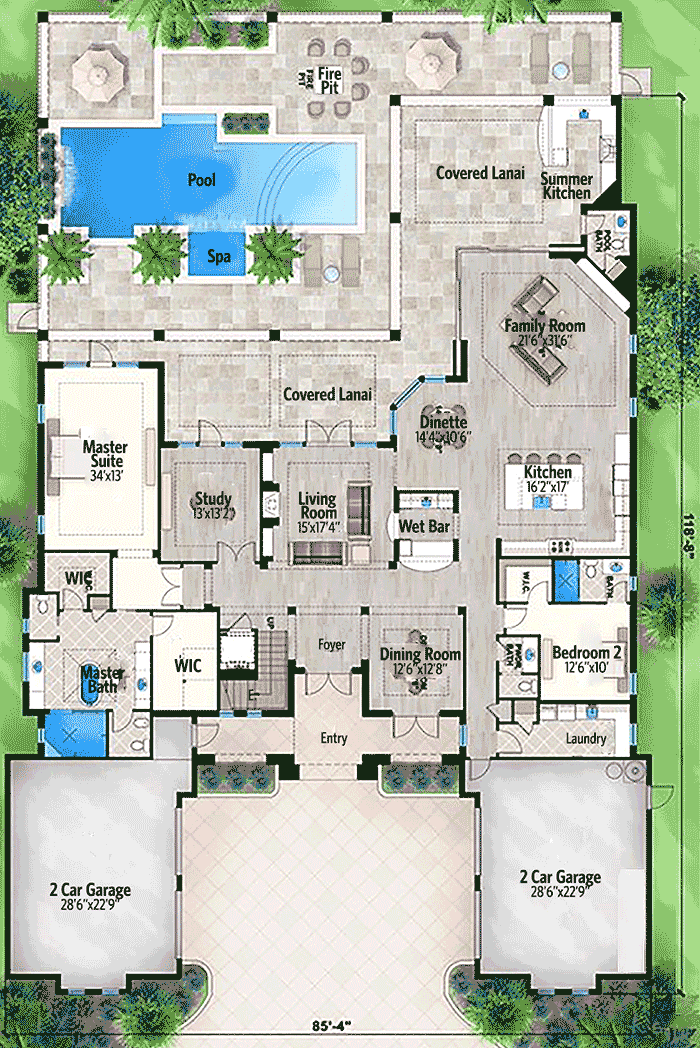

Main Level

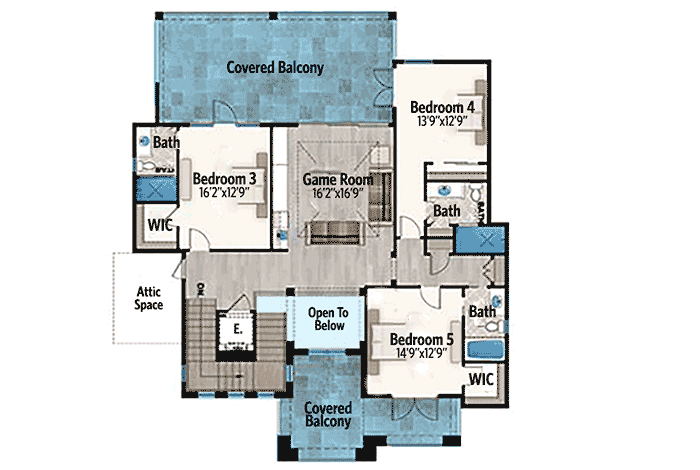

2nd Floor


Plan details

Square Footage Breakdown

  • Total Heated Area:5,403 sq. ft.

  • 1st Floor:3,944 sq. ft.

  • 2nd Floor:1,459 sq. ft.

  • Lanai:1,264 sq. ft.

  • Balcony / Veranda:702 sq. ft.

  • Entry:297 sq. ft.

    Beds/Baths

    • Bedrooms:5

    • Full Bathrooms:5

    • Half Bathrooms:2

    Foundation Type

    • Standard Foundations:Slab

    Exterior Walls

    • Standard Type(s):Block

    • Optional Type(s):2x6


    Dimensions

    • Width:85' 4"

    • Depth:129' 8"

    Garage

    • Type:Attached

    • Area:1451 sq. ft.

    • Count:4 cars

    • Entry Location:Courtyard

    Ceiling Heights

    • Floor / Height:First Floor / 12' 0"Second Floor / 10' 0"

    RoomTypeHeight
    FoyerFlat24' 9"
    Living RoomCoffered12' 8"
    Dining RoomCoffered12' 8"
    Family RoomCoffered13' 0"
    KitchenCoffered13' 0"
    StudyCoffered12' 8"
    Master BedroomCoffered12' 8"
    BonusVaulted10' 0"



    Roof Details

    • Primary Pitch:6 On 12

    • Framing Type:Truss
