Contemporary houses - 86014BW
Floor Plan

Main Level

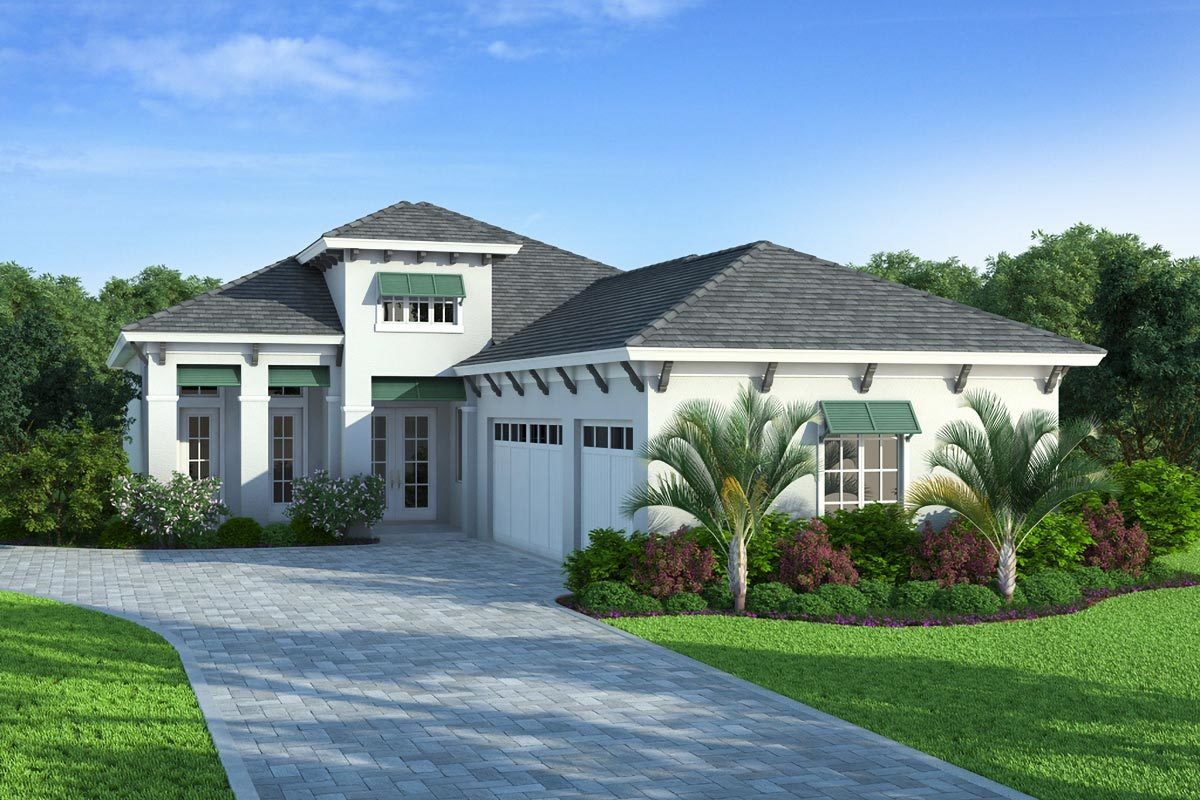

3 Bed Coastal House Plan with 2 Elevations - 86014BW floor plan - Main Level

Plan details


Square Footage Breakdown

  • Total Heated Area:2,949 sq. ft.

  • 1st Floor:2,949 sq. ft.

  • Lanai:551 sq. ft.

  • Entry:160 sq. ft.

Beds/Baths

  • Bedrooms:3

  • Full Bathrooms:3

  • Half Bathrooms:1

Foundation Type

  • Standard Foundations:Slab

Exterior Walls

  • Standard Type(s):Block / CMU (main floor)

  • Optional Type(s):2x6


Dimensions

  • Width:44' 8"

  • Depth:114' 8"

Garage

  • Type:Attached

  • Area:766 sq. ft.

  • Count:3 cars

  • Entry Location:Courtyard

Ceiling Heights

  • Floor / Height:First Floor / 10' 0"

RoomTypeHeight
Great RoomCoffered13' 0"
EntryFlat18' 0"
FoyerCoffered13' 0"
Dining RoomCoffered13' 0"
KitchenCoffered13' 0"
Master BedroomCoffered13' 0"
Master BathCoffered12' 8"

Roof Details

  • Primary Pitch:6 On 12

  • Framing Type:Truss
